Weighing Indicator

Group Weighing Indicator
Min. Order 1 piece
Terms of Payment all
Update Time 2017-04-30
Item specifics
  • Description
  • Product review

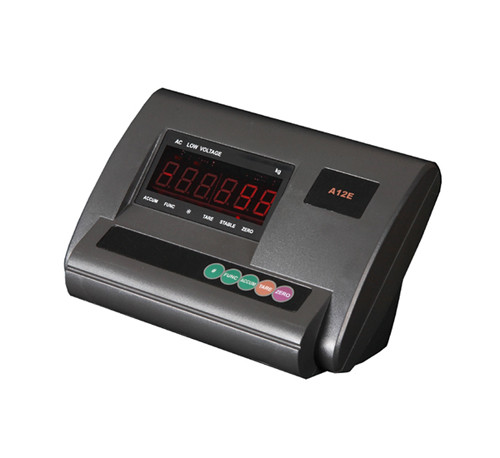

*Name: Weighing indicator
*Model: OIML XK3190-A12E
*Accuracy: GradeIII, n=3000
*Power supply: Battery DC6V/4AH
*Operating temperature/humidity: 0-40C; <90%RH
*Transporting temperature: -20~ 50C
*Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.

A/D conversion with readability 1/30000
- Input signal range: -10mV~15mV
- Load cell Excitation: DC 5V: /<150mA
- Max. Load cell connection: 4 at 350 ohm
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (auto/manual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
